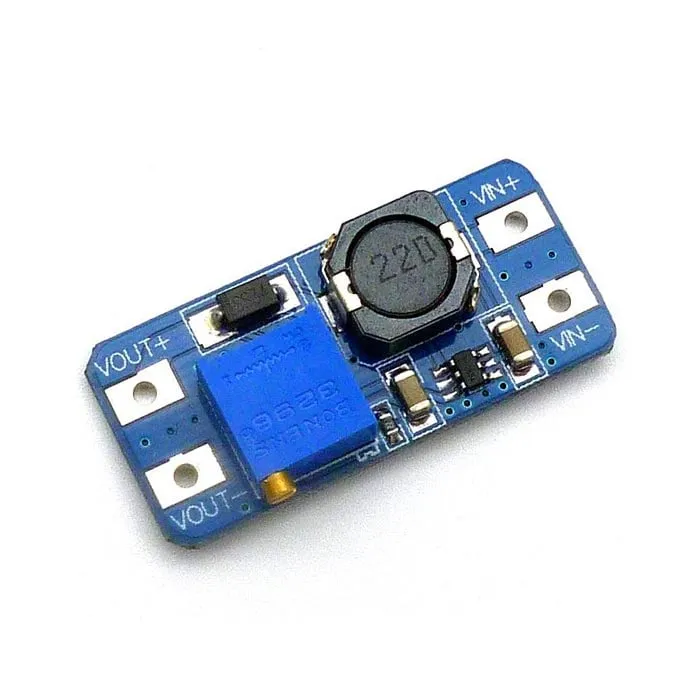

MT3608 2A DC-DC Step Up Power Apply / Booster Module
⚡ MT3608 2A Max DC-DC Step-Up Booster Module (2V–24V to 5V–28V)
Product Description:
The MT3608 Step-Up (Boost) Converter Module is a compact, high-efficiency power supply solution that converts low input voltages (2V–24V) into higher output voltages (up to 28V). Designed for DIY electronics, battery-powered projects, and embedded systems, this module delivers a maximum output current of 2A, making it ideal for powering microcontrollers, sensors, displays, and other devices where voltage boosting is required.
The module features an onboard potentiometer that allows precise adjustment of the output voltage and is easy to integrate into a wide range of projects.
✅ Key Features:
Input Voltage Range: 2V to 24V DC
Output Voltage Range: 5V to 28V DC (adjustable via onboard potentiometer)
Maximum Output Current: 2A (peak)
High Efficiency Switching Regulator (MT3608 Chip)
Compact Size: 36mm x 17mm x 14mm
Lightweight and Portable
Overvoltage & Overcurrent Protection (with proper use)
Ideal for Arduino, Raspberry Pi, Robotics, and other electronic projects
⚙️ Pinout Description:
| Pin | Function |
|---|---|
| IN+ | Connect to positive terminal of power input (2V–24V) |
| IN− | Connect to ground of power input |
| OUT+ | Output positive voltage to load (up to 28V) |
| OUT− | Output ground to load |
⚠️ Important Notes:
Do not exceed the maximum input voltage of 24V to avoid damaging the module.
The output voltage must always be higher than the input voltage.
Ensure proper heat dissipation when operating near peak current (2A).
Not designed for high-precision or regulated voltage-sensitive devices without external stabilization.
📦 Package Includes:
1 x MT3608 2A Max DC-DC Step-Up Booster Power Module
