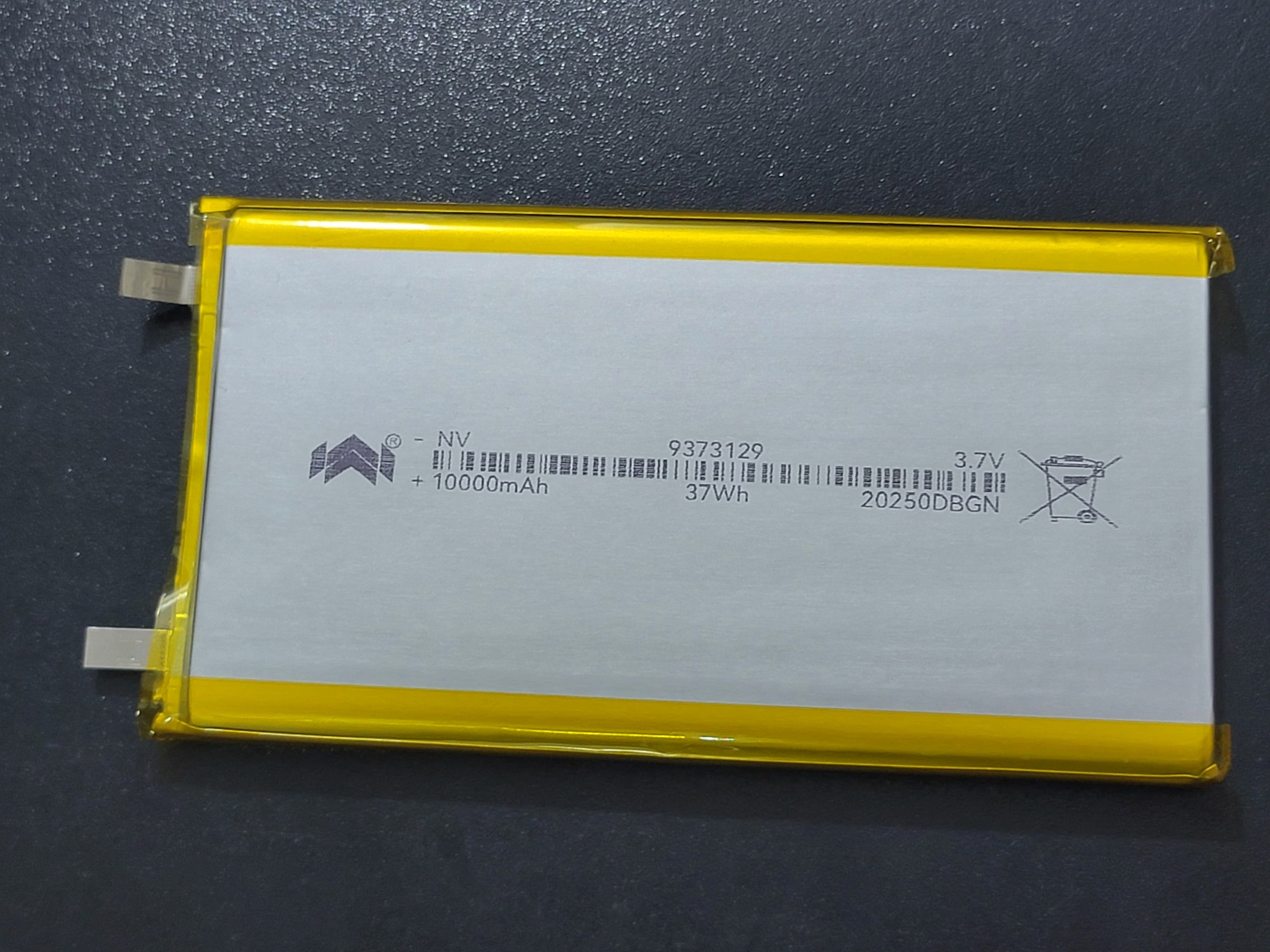

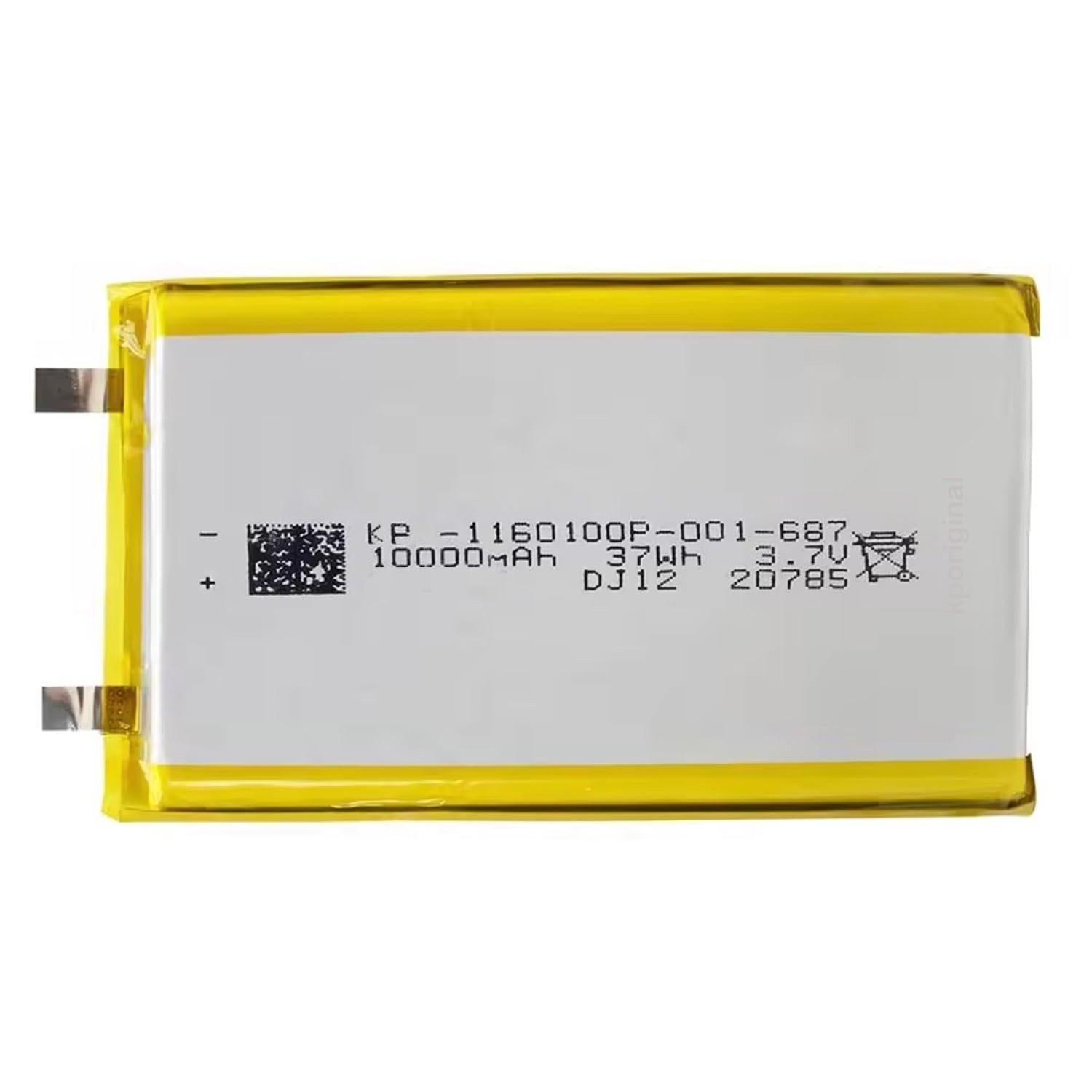

3.7V 10000mAh Lithium-Ion Polymer (LiPo) Battery – High Capacity Rechargeable
Product Description:
This 3.7V 10000mAh Lithium-Ion Polymer Battery is a high-capacity rechargeable power source designed for demanding portable electronic applications. Its slim, flat form factor makes it ideal for integration into medium-to-large size electronics where space-saving and long battery life are important.
With a nominal voltage of 3.7V and a maximum of 4.2V when fully charged, this battery provides reliable energy for a wide range of devices, from DIY robotics and embedded systems to backup power modules and custom electronics.
It comes with an optional built-in protection circuit module (PCM) to prevent:
Overcharging
Over-discharging
Short circuits
This ensures safe operation and long battery life.
Specifications:
Parameter | Description |
---|---|
Battery Type | Rechargeable Lithium-ion Polymer |
Nominal Voltage | 3.7V |
Full Charge Voltage | 4.2V |
Capacity | 10000mAh |
Discharge Cutoff Voltage | ~3.0V |
Protection Circuit | Optional (Overcharge/Discharge) |
Output Connector | Bare wires / JST / Customized (varies) |
Typical Dimensions | Depends on model (~100×60×10mm or similar) |
Weight | Approx. 150g – 200g (depending on model) |
Cycle Life | 500+ full charge/discharge cycles |
