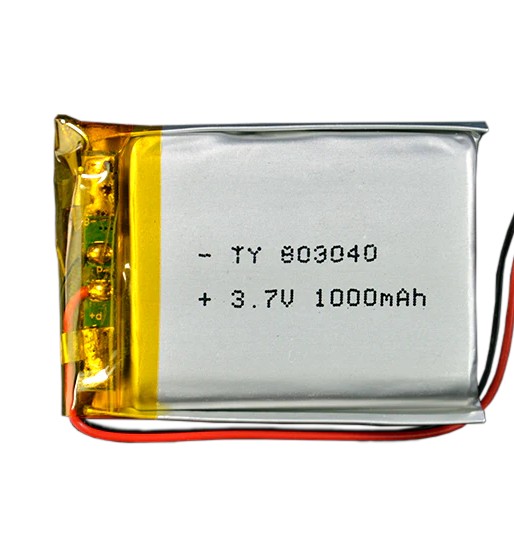

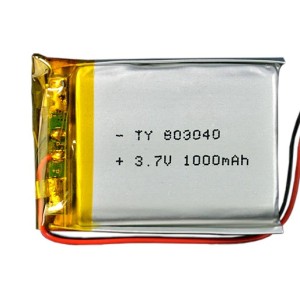

3.7V 1000mAh Lithium-Ion Polymer (LiPo) Battery with Protection Circuit & JST SH Connector
Hotline Order:
Open 24/7
01603-546830
Product Description:
This compact 3.7V 1000mAh Lithium-Ion Polymer (LiPo) battery is a reliable power source for portable electronics, wearables, DIY projects, and embedded systems. The small, lightweight design makes it ideal for space-constrained applications, while still delivering a significant amount of energy for its size.
The battery includes an integrated PCM (Protection Circuit Module) that safeguards it against:
Overcharging
Over-discharging
Short circuits
This makes it safe and robust for long-term use in rechargeable electronic systems.
The voltage of the battery ranges from 4.2V when fully charged down to 3.0V when discharged. Operating it within this range ensures optimal performance and longer cycle life.
It comes pre-attached with a Micro JST SH 2-pin connector, commonly used in TinyCircuits products, as well as many compact electronics and robotics systems. This allows for direct plug-and-play integration into supported development boards and modules.
Specifications:
| Parameter | Details |
|---|---|
| Nominal Voltage | 3.7V DC |
| Full Charge Voltage | 4.2V DC |
| Discharge Cutoff Voltage | ~3.0V DC |
| Capacity | 1000mAh |
| Chemistry | Lithium-Ion Polymer (LiPo) |
| Output Connector | Micro JST SH 2-pin (1.25mm pitch) |
| Protection Circuit | Built-in (PCM) |
| Max Discharge Current | ~1C (1A continuous) (typical) |
| Dimensions (Approx.) | ~45mm x 28mm x 5.5mm |
| Weight | ~18 grams |
| Rechargeable | Yes (500+ cycles typical) |
