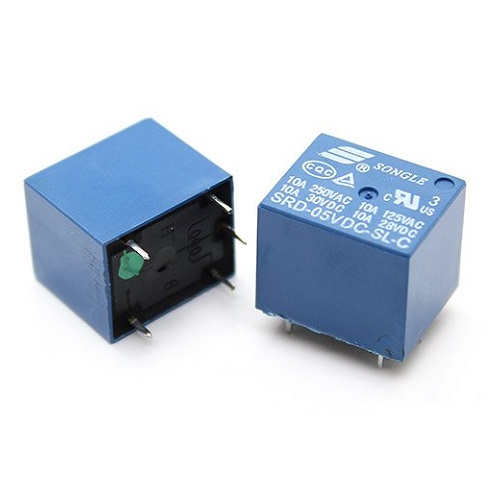

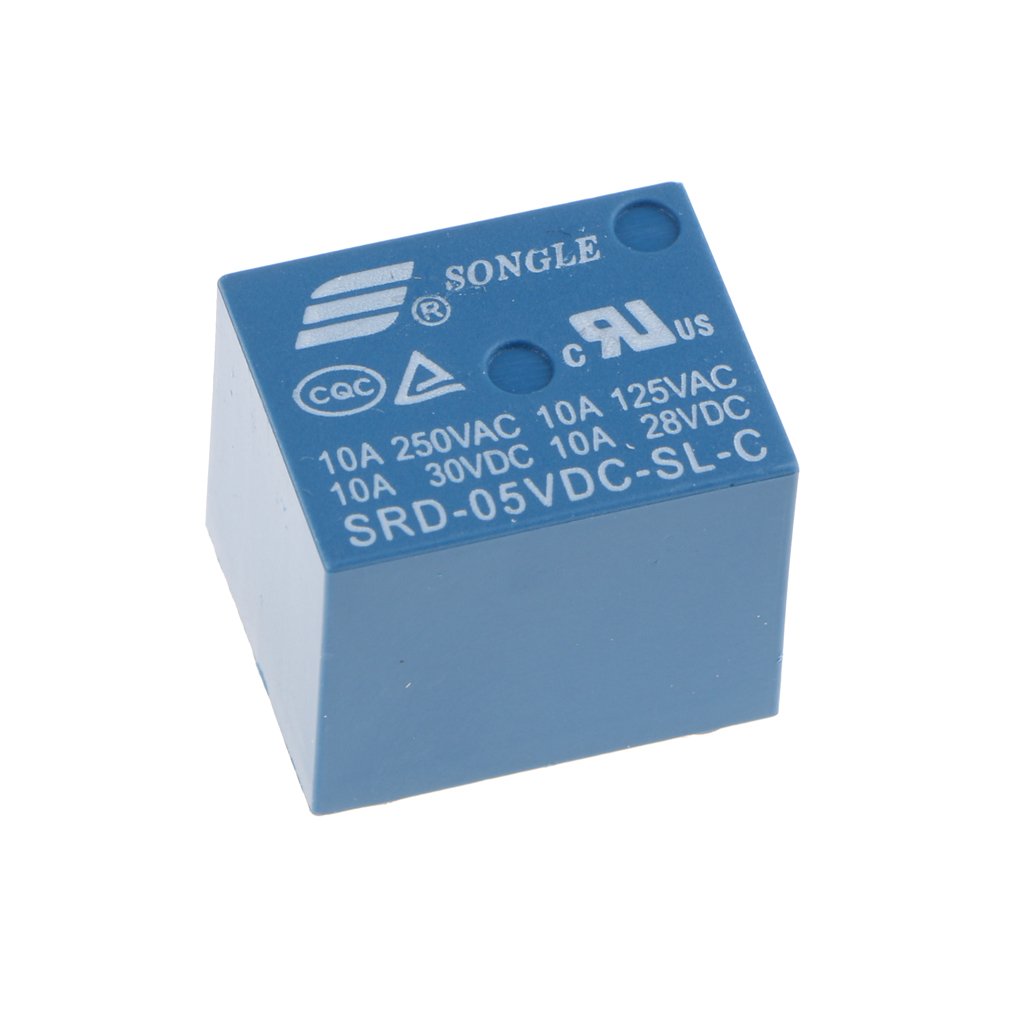

V DC Power Relay – SRD-05VDC-SL-C
Key Features:
Rated Coil Voltage: 5V DC
Contact Capacity: 10A at 250V AC or 10A at 30V DC
Configuration: SPDT (Single Pole Double Throw)
Compact size – ideal for PCB mounting
Durable blue plastic enclosure
RoHS compliant and widely used in automation projects
Specifications:
| Parameter | Value |
|---|---|
| Model Number | SRD-05VDC-SL-C |
| Coil Voltage | 5V DC |
| Switching Voltage | 250V AC / 30V DC (Max) |
| Switching Current | 10A (Max) |
| Contact Form | SPDT |
| Pin Configuration | 5-pin for PCB mounting |
| Dimensions | Approx. 19mm x 15.5mm x 15mm |
| Insulation Resistance | ≥100MΩ @ 500V DC |
| Operating Temperature | -40°C to +85°C |
