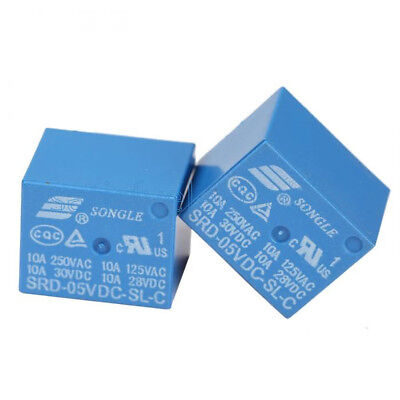

⚡ 5V Relay SRD-05VDC-SL-C – SPDT, 10A, PCB Mount Power Relay (5-Pin)
Product Description:
The SRD-05VDC-SL-C is a compact, high-performance 5V DC SPDT power relay, perfect for switching high-power AC or DC loads through low-power control signals. Designed for PCB mounting, this 5-pin Single Pole Double Throw (SPDT) relay allows reliable automation of devices in embedded systems, DIY electronics, appliances, and automotive circuits.
With a 10A switching capacity, it is widely used in microcontroller projects (Arduino, Raspberry Pi, etc.), as well as industrial and home automation.
✅ Key Features:
🔌 Rated Load: 10A @ 250VAC / 125VAC, 10A @ 30VDC / 28VDC
📦 Model: SRD-05VDC-SL-C
🛠️ Mounting Type: PCB Through-Hole
🧲 Contact Type: SPDT (Single Pole Double Throw – NO & NC)
🔄 Compact Design: Fits into high-density circuit layouts
💡 Reliable Switching: Built-in coil for electromagnetic control
🔧 Reinforced Plastic Casing: For insulation and protection
✅ RoHS, UL, CUL, and TÜV Certified
⚙️ Specifications:
| Parameter | Details |
|---|---|
| Product Name | Power Relay |
| Model | SRD-05VDC-SL-C |
| Operating Voltage | 5V DC |
| Rated Current | 10A (Max) |
| Contact Configuration | SPDT (NO & NC) |
| Mounting Type | PCB Mount |
| Pin Count | 5 Pins |
| Contact Material | Silver Alloy |
| Housing Material | Plastic & Metal |
| Dimensions (L×W×H) | 19mm × 15mm × 15mm |
| Weight | Approx. 9g |
| Color | Blue |
🧩 Applications:
Home and industrial automation
Smart appliances and lighting systems
Automotive electronics and alarms
Audio and AV systems
Remote control switching
Microcontroller-based control systems (Arduino, ESP32, etc.)
📦 Package Includes:
1 × 5V Relay SRD-05VDC-SL-C (5-Pin, SPDT, PCB Mount)
