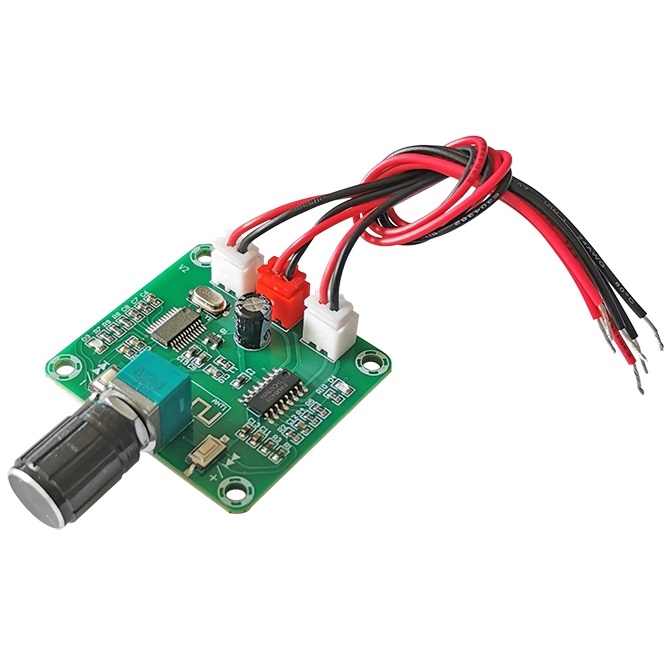

Bluetooth Audio Receiver with Amplifier – PAM8403 (2x5W Stereo Output)
Key Features:
Integrated Bluetooth 4.2 audio receiver for wireless music streaming
Based on PAM8403 Class D amplifier – high efficiency, low distortion
Dual-channel stereo output: 2x5W @ 5V input
Compact, ready-to-use module with onboard volume control knob
Operates directly from USB 5V or DC power supply
Specifications:
Parameter | Description |
---|---|
Bluetooth Version | 4.2 (A2DP, AVRCP supported) |
Audio Output | Stereo (L + R) |
Amplifier Chip | PAM8403 Class D |
Output Power | 2x5W @ 5V, 4Ω load |
Input Voltage | 5V DC (USB or header) |
Signal-to-Noise Ratio | ≥ 90dB |
THD+N | ≤ 10% |
Module Size | ~45mm × 35mm |
Connector Type | Screw terminals or pin headers |
Volume Control | Onboard potentiometer knob |
