DC 12V 433Mhz RF Wireless Remote Control Switch 10A Relay Receiver Module On Off Transmitter
Hotline Order:
Open 24/7
01603-546830

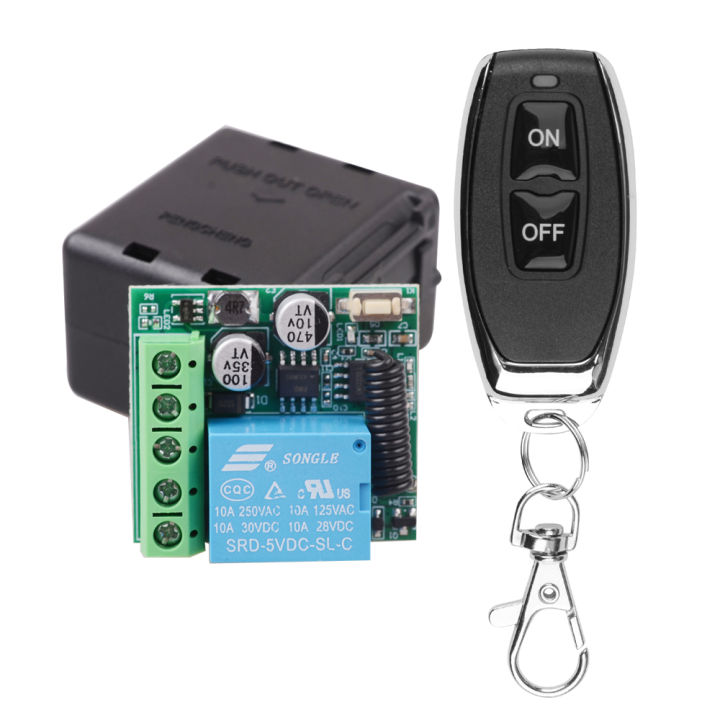

DC 12V 433MHz 1-Channel RF Wireless Remote Control Switch Kit
Includes: 1CH Receiver Module + 2-Button Transmitter Remote
Ideal for: DIY electronics, remote control systems, smart home automation
🔧 Receiver Specifications (Model: RYO-XPX-5P)
RF Working Mode: Superheterodyne Reception
Modulation Mode: ASK (AM)
Working Modes:
Momentary
Toggle
Latching
Time Delay (5s / 10s / 15s)
Input Voltage: DC 12V
Operating Frequency: 433MHz
Quiescent Current: 5mA
Receiving Sensitivity: >97 dBm
Remote Control Range (Theoretical): 80–100 meters
(Actual range may vary based on environment and usage)
Connection Method: Fixed Wiring Pillar
Decoding Type: MCU Software Decoding
🎮 Transmitter Specifications (Model: J027)
Operating Frequency: 433MHz
Power Source: 3V Coin Cell Button Battery (Included)
Buttons: 2 Buttons
Material: PVC
Size: 59mm x 28mm x 8mm
Operating Voltage: 3V
Operating Current: 12mA
Transmitting Power: 10mW
Modulation Mode: ASK (AM)
Encoding Type: Learning Code
Transmission Range: 20–50 meters
