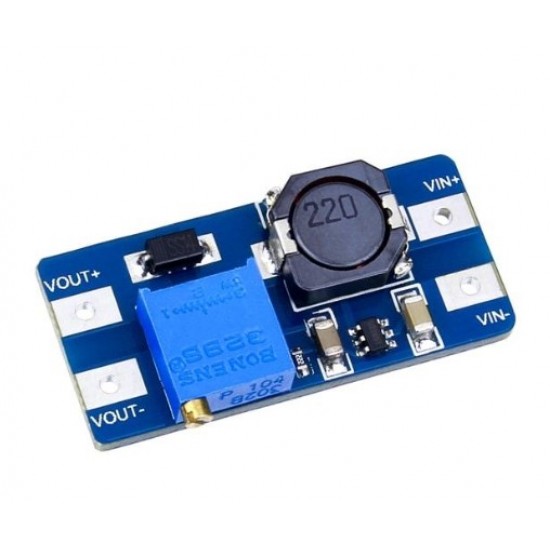

DC-DC Step Up Boost Converter Module MT3608

MT3608 DC-DC Step-Up (Boost) Power Module – 2A Max

The MT3608 DC-DC Step-Up Power Module is a compact and efficient boost converter that can step up input voltages from 2V to 24V to output voltages between 5V and 28V, with a maximum output current of up to 2A (1A recommended for stable operation).

This module is ideal for battery-powered projects or applications where a higher voltage is needed than the source can provide. It is adjustable via an onboard potentiometer, making it suitable for a wide range of DIY and embedded electronics applications.

Key Features:

Input Voltage: 2V to 24V DC

Output Voltage: Adjustable from 5V to 28V

Max Output Current: Up to 2A (1A typical for most settings)

Conversion Efficiency: Up to 93% (varies with load and voltage)

Voltage Adjustment:

Clockwise (CW): Decreases output voltage

Counterclockwise (CCW): Increases output voltage

Built-in Protections: Over-current and thermal protection

Capacitors: Uses low ESR ceramic capacitors for durability and compact size

Form Factor: Small, lightweight, and easy to integrate

Important Notes:

This is a boost converter, so the input voltage must always be lower than the desired output voltage.

The actual output limit depends on input voltage and load conditions. For example, with a 9V input and 1A output, the maximum stable output voltage is around 20V.

Pin Configuration:
