🔧 DSS Servo – RDS3218 High Torque Digital Servo Motor
Ideal for Robotics, RC Vehicles, Smart Systems, and Automation Projects

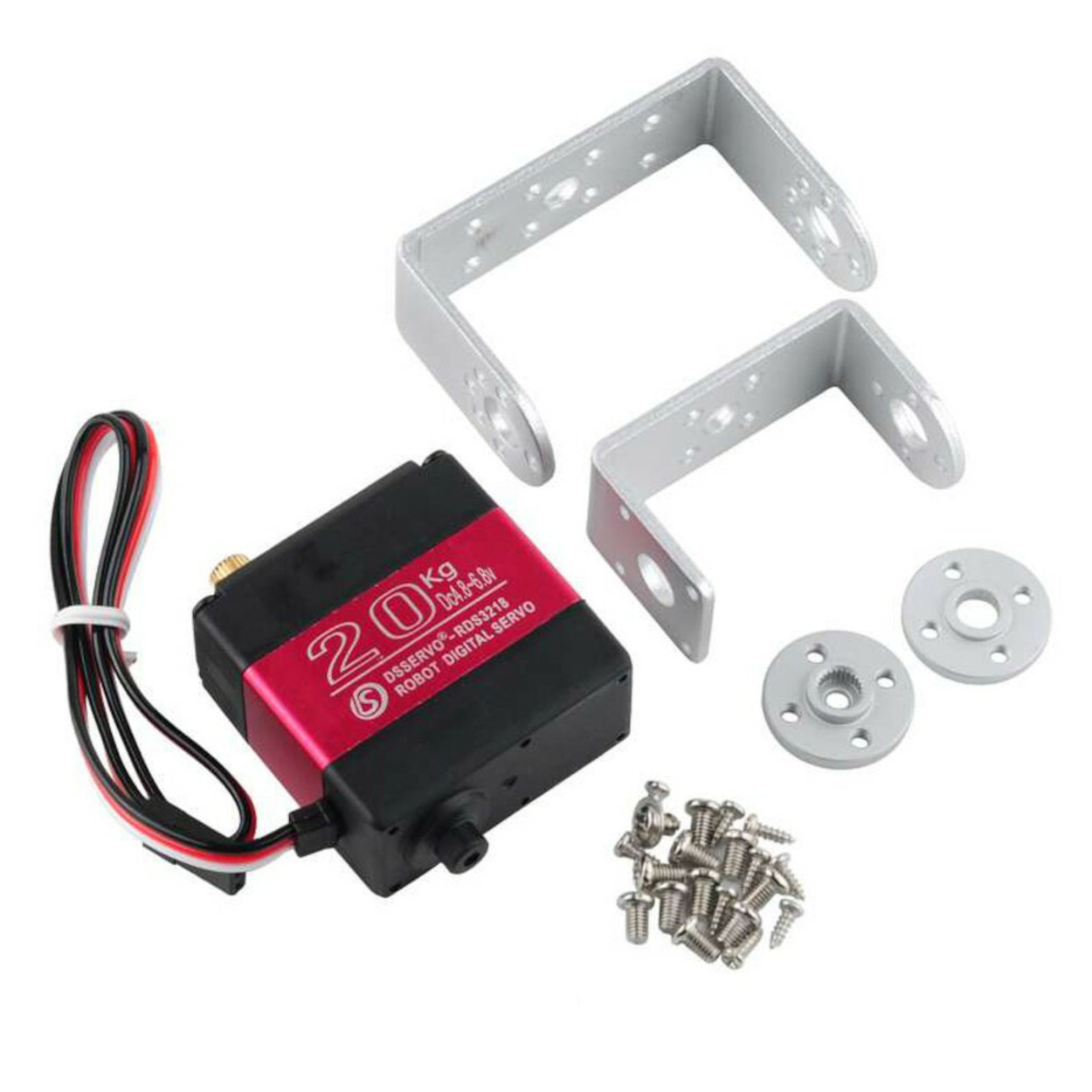

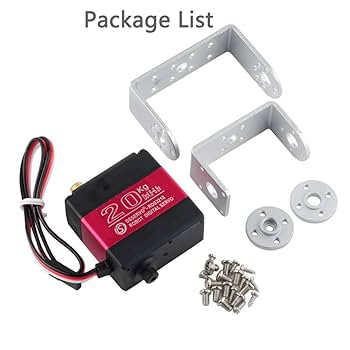

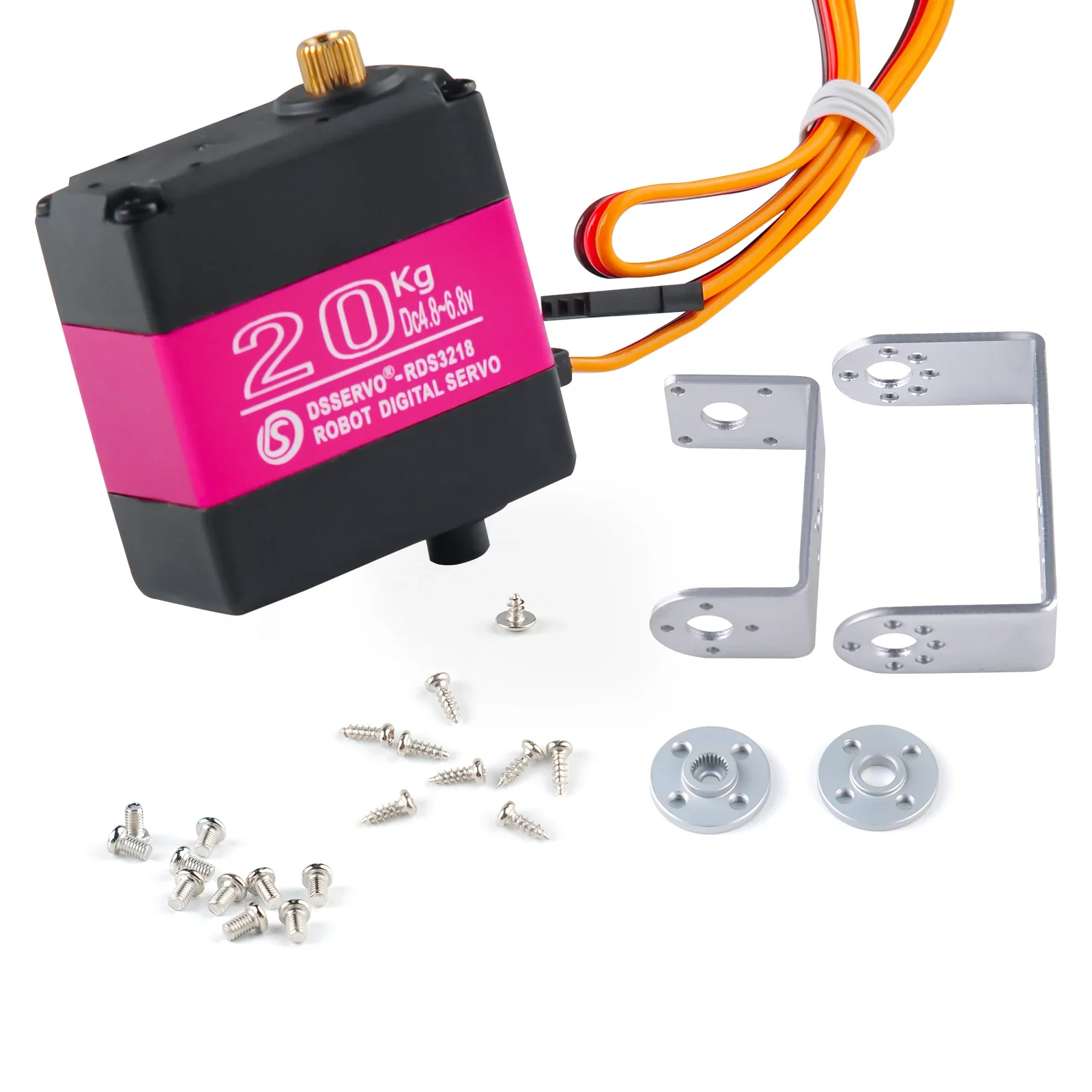

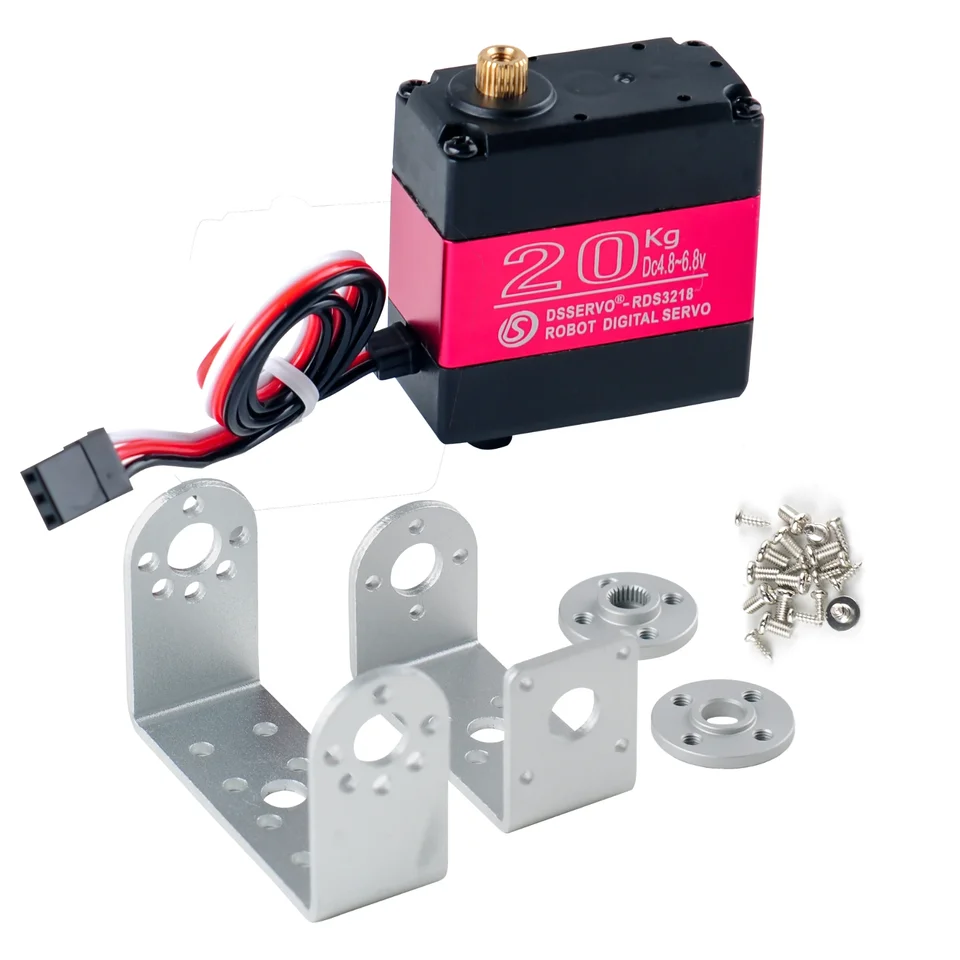

📦 What's in the Box:
DSS RDS3218 Digital Servo Motor
Mounting Accessories
🛠️ Product Overview
The DSS RDS3218 is a high-performance digital servo motor engineered for demanding applications like robotic arms, smart gates, RC cars, boats, and automation systems. With its powerful torque, fast response time, durable gear system, and dual ball bearings, this servo ensures precision and strength under load.
⚙️ Technical Details
| Feature | Description |
|---|---|
| Model | DSS Servo RDS3218 |
| Assembly Required | Yes |
| Battery Required | No |
| Battery Included | No |
| Material | Metal + Plastic |
| Color | Red |

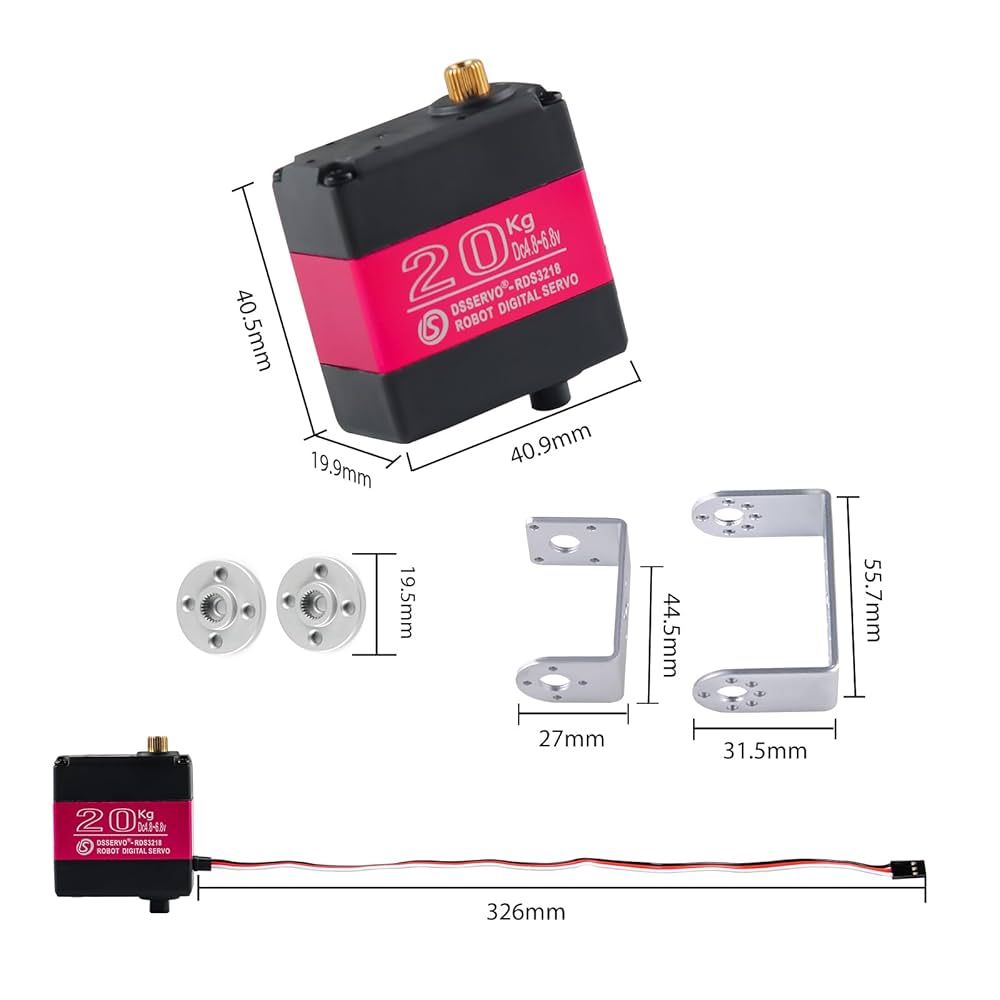

| Product Dimensions | 40 × 20 × 40 mm |
| Box Dimensions (L×W×H) | 2 × 1 × 5 mm |
| Item Weight | 60 g (motor) / 100 g (packaged) |
| Gear Ratio | 342:1 |
| Bearings | Dual Ball Bearings |
| Wire Length | 300 ± 5 mm |
| Motor Type | 3-pole DC Motor |
| Manufacturer | Wishiot |
| Country of Origin | USA |
| Recommended Age | 1 month and up |
| ASIN | B0CCVLNQ7F |
| Customer Rating | ⭐ 4.5/5 (22 Ratings) |
| First Available Date | 9 August 2023 |
| Included Components | Accessories |
| Generic Name | Servo Motor |
🌡️ Environmental Tolerance
| Condition | Range |
|---|---|
| Storage Temperature | -30℃ to +80℃ |
| Operating Temperature | -15℃ to +70℃ |
| Operating Voltage | 4.8V to 6.8V |
⚡ Electrical Specifications
| Parameter | @5V Value | @6.8V Value |
|---|---|---|
| Idle Current (stopped) | 4 mA | 5 mA |
| Speed (no load) | 0.2 sec/60° | 0.17 sec/60° |
| Stall Torque (locked) | 21.5 kg·cm | 25 kg·cm |
| Stall Current (locked) | 1.6 A | 2.5 A |
🎛️ Control Specifications
| Feature | Value |
|---|---|
| Control Type | PWM (Pulse Width Modulation) |
| Pulse Width Range | 500–2500 μsec |
| Neutral Pulse | 1500 μsec |
| Motion Angle | 180° or 270° (based on PWM range) |
| Dead Band Width | 3 μsec |
| Frequency Range | 50–330 Hz |
| Rotation Direction | Counterclockwise (500–2500 μsec) |
✅ Why Choose DSS RDS3218 Servo?
High torque output for heavy-duty applications
Fast rotation response with low latency
Durable metal gears and dual bearing design
Excellent temperature and voltage range tolerance
Ideal for robotic arms, grippers, smart doors, and more
