Product Description:

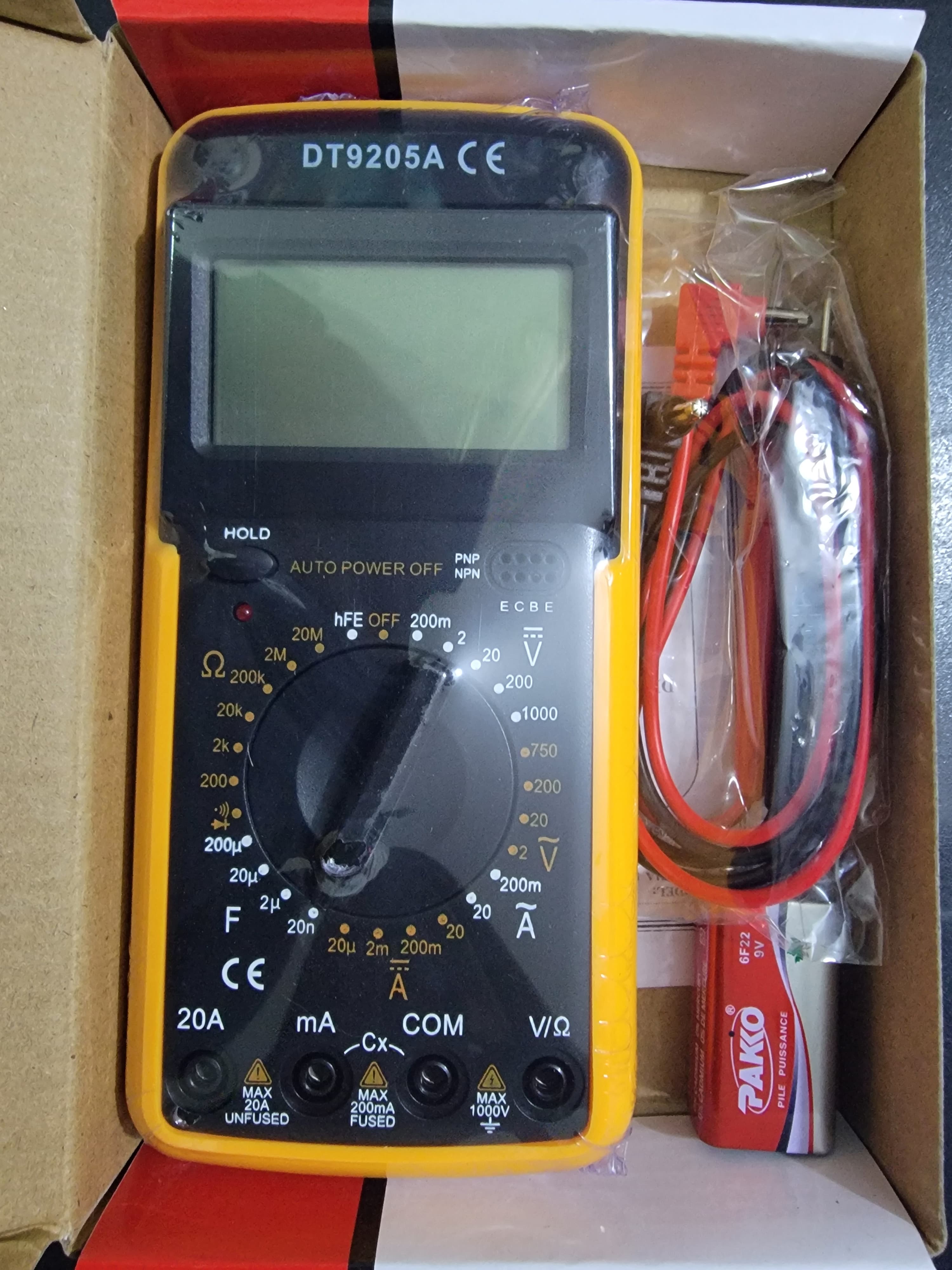

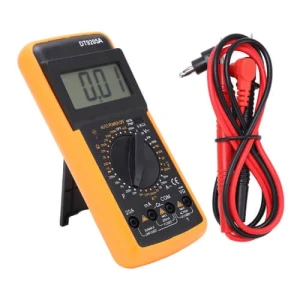

The DT9205A Digital Multimeter is a versatile, easy-to-use multimeter designed for professionals, students, and hobbyists. With its large LCD screen, intuitive dial, and wide measurement range, it's ideal for electronics repair, DIY projects, electrical troubleshooting, and more.
Equipped with auto power-off, overload protection, and data hold function, the DT9205A combines functionality and safety in a compact, budget-friendly package.
Key Features:
Large 3½ digit LCD display (1999 counts)
Measures AC/DC voltage, DC current, resistance, diodes, transistors, and continuity
Built-in transistor hFE test socket
Data Hold function to freeze readings
Auto power-off to preserve battery life
Overload protection on all ranges
Detachable test leads included
Specifications:
Function | Range |
---|---|
DC Voltage | 200mV – 1000V |
AC Voltage | 200V – 750V |
DC Current | 2mA – 20A |
Resistance | 200Ω – 200MΩ |
Diode Test | Yes |
Transistor Test | hFE (PNP/NPN) |
Continuity Test | Yes (with buzzer) |
Power Supply | 9V Battery (Included or Optional) |
Dimensions | ~185mm x 90mm x 35mm |
Weight | ~250g (with battery) |
