EMG Muscle Sensor V3.0 Module Kit 💪🔬
Measure Muscle Activity with Precision
Specifications:
Electrode Pad Diameter: 52 mm
Cable Length: 2 feet
Weight: 30g
Operating Voltage: ±3.5V (Low voltage operation)
Key Features:
✅ Improved Adjustable Gain – Enhanced signal strength and stability
✅ New Onboard Port – Compatible with updated cable design
✅ Plug-and-Play – Directly connects to microcontrollers like Arduino
✅ Durable Design – Built to withstand rugged usage

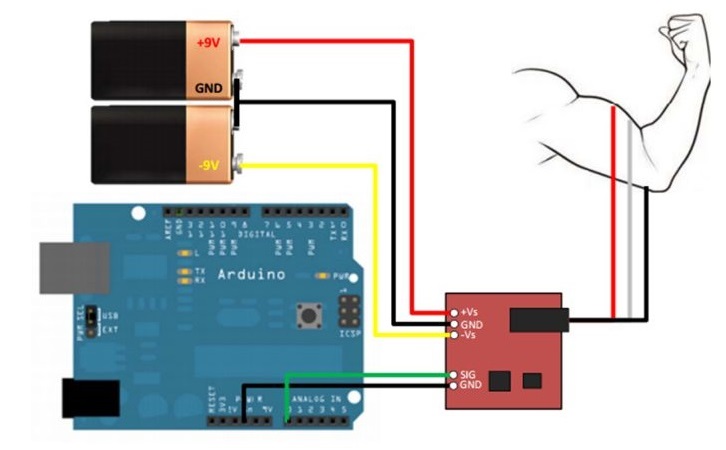

Wiring Instructions:
🔹 Reference Electrode (Black/Brown Cable): Attach to a non-muscle area (elbow, shin, or forearm)
🔹 Signal Electrode 1 (Red Cable): Place mid-length of target muscle
🔹 Signal Electrode 2 (Blue Cable): Attach at the end of the muscle
🔌 SIG Pin → Analog Input of your microcontroller
🔌 GND Pin → Ground of your microcontroller
⚠️ Caution:
Improper use can cause harm. Adult supervision required for minors.
Not a medical device — Not for diagnosis or treatment purposes.
Package Includes:

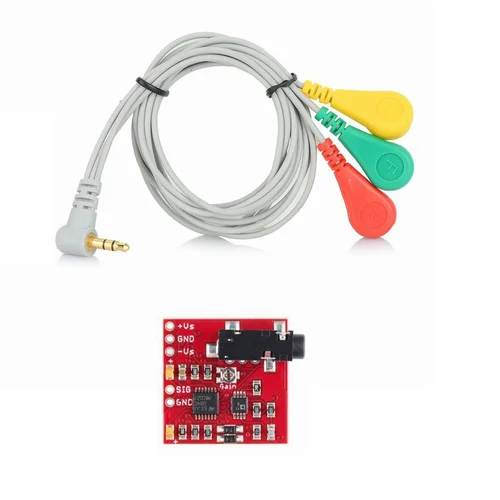

1 x EMG Muscle Sensor V3.0 Module
3 x Electrode Pads
1 x Connecting Cable
