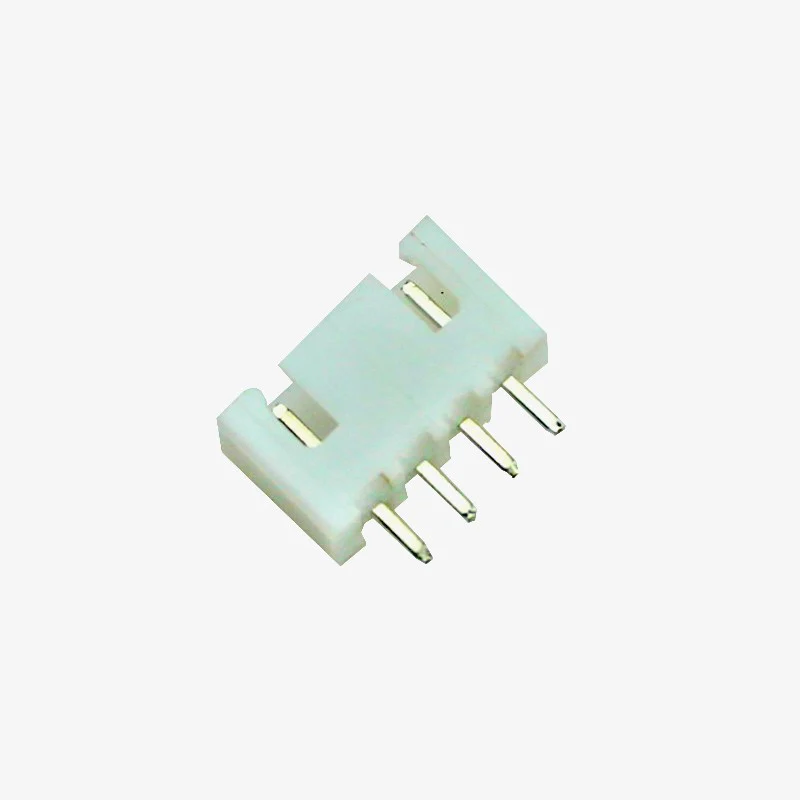

🔌 JST-XH 2.54mm 4-Pin Straight Socket Connector
Product Description:
The JST-XH 4-Pin Straight Connector is a compact and reliable socket connector designed for a wide range of electronic applications. With a 2.54mm pin pitch, this straight-type connector is ideal for PCB mounting and compatible with standard 4-pin JST-XH plugs.
Perfect for use in battery connections, sensors, motors, and PCB interface applications, this connector ensures a secure and consistent electrical connection in compact designs.
✅ Key Features:
Type: JST-XH Socket (Female)
Pin Count: 4-Pin
Mounting Style: Straight (Through-Hole)
Pitch: 2.54mm
Material: Durable plastic housing with tin-plated terminals
Reliable Locking Mechanism: Ensures secure mating with JST-XH male connectors
Application: Ideal for PCB projects, battery connections, RC electronics, and more
⚙️ Specifications:
| Parameter | Specification |
|---|---|
| Model | JST-XH Straight Tunic Connector |
| Pin Spacing | 2.54mm |
| Pins | 4 |
| Connector Type | Socket (Female) |
| Mounting Type | Straight Through-Hole |
| Material | Plastic Housing, Tin Contacts |
| Rated Voltage | 250V |
| Current Rating | 3A Max |
| Operating Temp | -25°C to +85°C |
🛠️ Applications:
PCB interface connectors
Battery pack connections
Servo or motor wiring
Robotics and IoT devices
DIY electronics and prototyping
