KY-023 Dual Axis XY Joystick Module – 5V 5-Pin Sensor for Arduino
Hotline Order:
Open 24/7
01603-546830

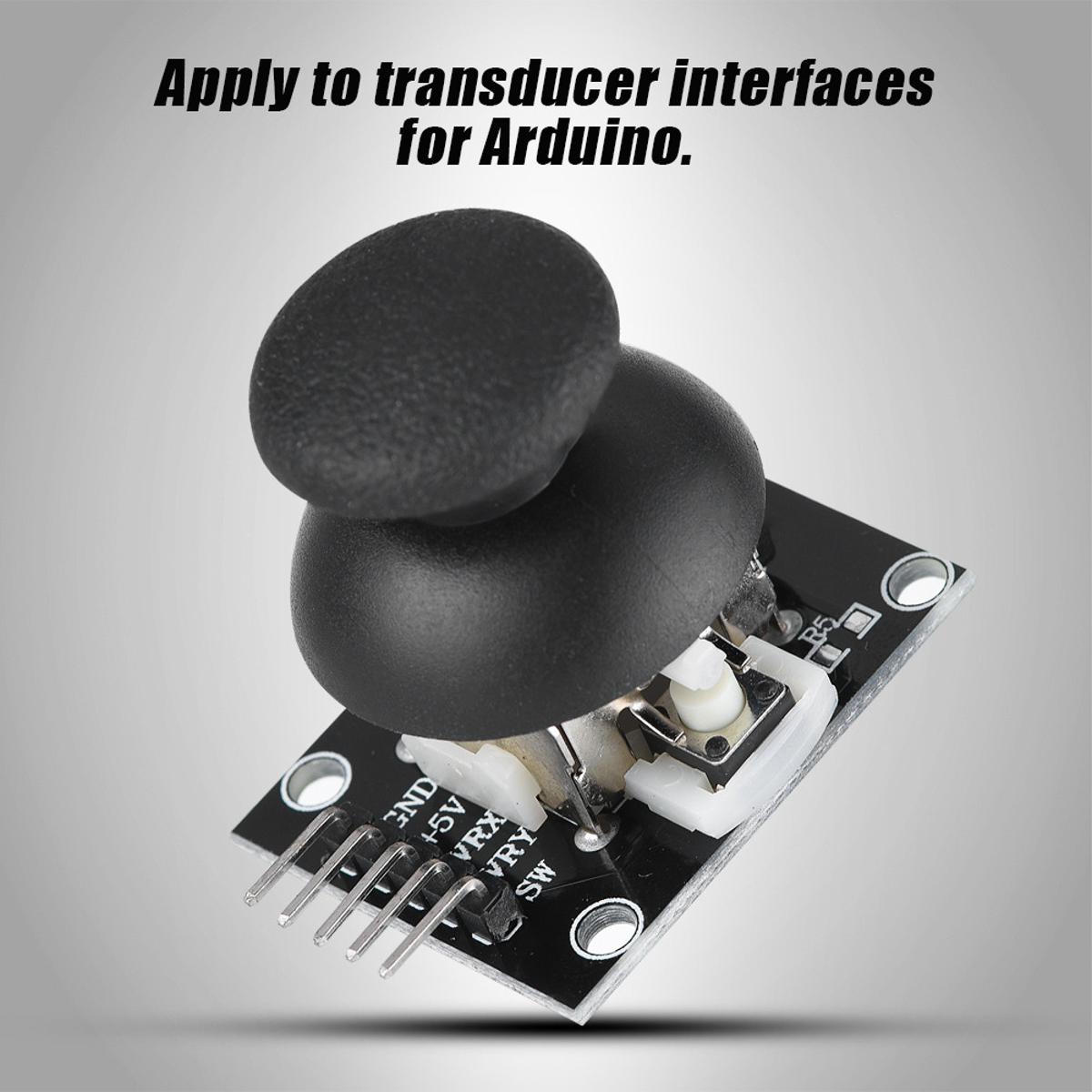

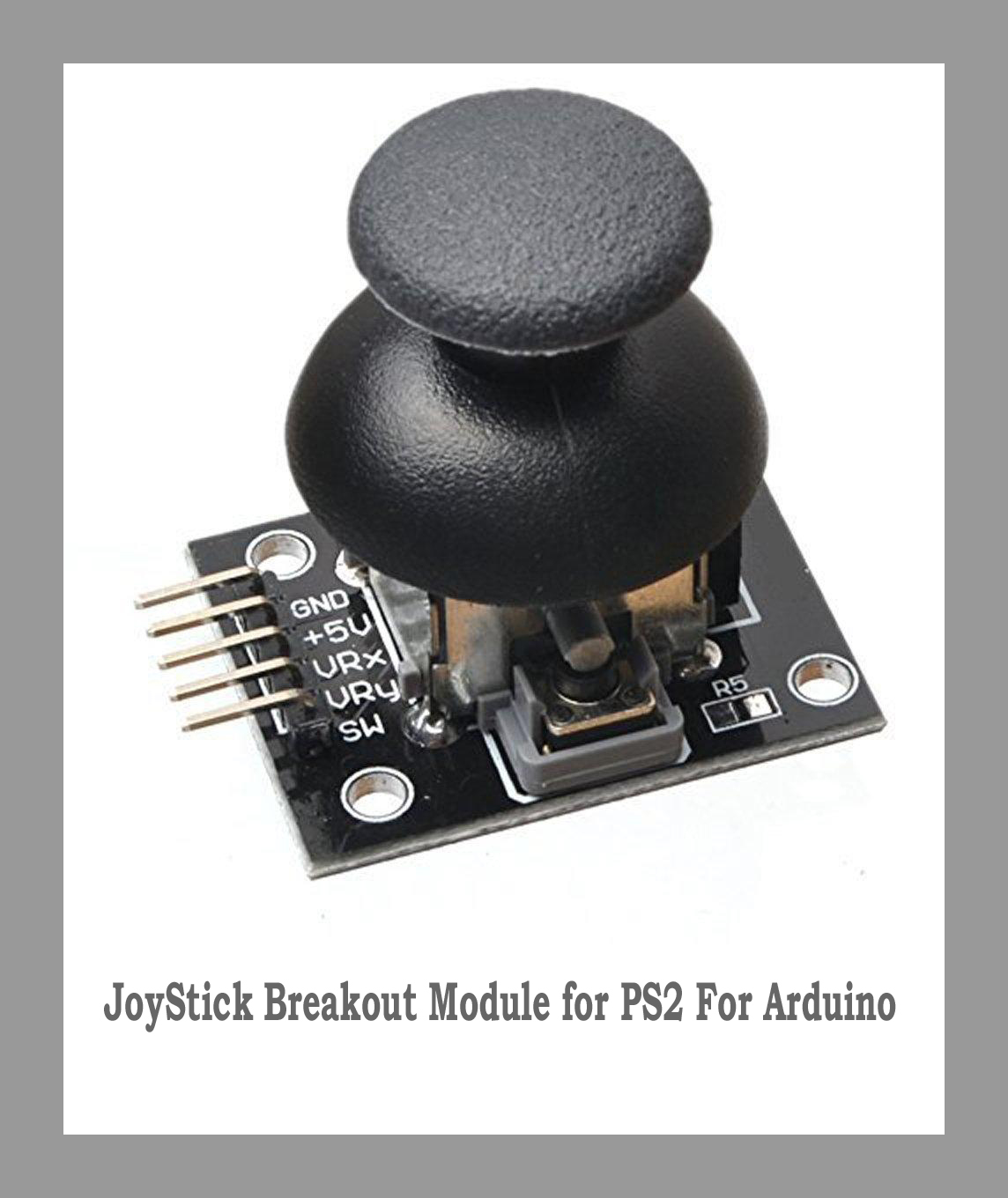

🎮 KY-023 Dual Axis XY Joystick 5 Pin Module – PS2 Joystick Control Lever Sensor for Arduino & Microcontrollers
🔍 Product Overview:
The KY-023 Dual Axis XY Joystick Module is an analog joystick sensor designed for precise and smooth control in your electronics projects and game controllers. Featuring two independent 10K potentiometers (for X and Y axes) and a built-in push-button, it’s perfect for Arduino, Raspberry Pi, ESP32, and more!
✨ Key Features:
🎛️ Two independent 10K potentiometers for X & Y axes
🔄 Spring-loaded auto-return to center position
🔘 Integrated push-button switch activated by pressing the knob
✋ Comfortable cup-type knob for easy handling
🤖 Compatible with Arduino and most microcontrollers
🔌 Easy 5-pin connection interface
⚡ Operates on 3.3V to 5V DC input voltage
📏 Compact size: 4.0 cm x 2.6 cm x 3.2 cm
⚖️ Lightweight: 15 grams
📊 Specifications:
| Parameter | Details |
|---|---|
| ⚡ Operating Voltage | DC 3.3V – 5V |
| 🎚️ Potentiometer Value | 10K Ω |
| 🔌 Pin Interface | 5 pins, 2.54 mm pitch |
| 📐 Dimensions | 4.0 cm x 2.6 cm x 3.2 cm |
| 🌡️ Operating Temperature | 0°C to 70°C |
| ⚖️ Weight | 0.015 kg |
🔌 Pin Description:
🔋 VCC: Power supply (5V)
⏚ GND: Ground
↔️ VRx: Analog output for X axis (center voltage ~ VCC/2)
↕️ VRy: Analog output for Y axis (center voltage ~ VCC/2)
🔘 SW: Digital output for push-button (active low, requires pull-up resistor)
⚙️ How It Works:
🎮 Moving the joystick changes the voltage on X and Y analog outputs, letting your microcontroller detect direction.
🔘 Pressing the joystick knob activates the push-button switch for additional control.
🔄 Joystick automatically returns to center when released, providing neutral position feedback.
📦 Package Includes:
1 x KY-023 Dual Axis XY Joystick Module (5-pin)
