MG996R High Torque Servo Motor – 180° Rotation | Metal Gear | 12kg.cm Torque
Powerful and reliable servo for robotics, RC models, and mechanical projects.
✅ Key Features:
Model: MG996R
Motor Type: Analog Servo
Rotation Range: 180°
Gear Type: Full metal gears for durability and strength
Operating Voltage: 4.8V – 7.2V
Torque:
9.4 kg·cm @ 4.8V
11–12 kg·cm @ 6V
Speed: 0.19 sec/60° @ 4.8V
Control System: PWM (Pulse Width Modulation)
Dead Band Width: 5 µs
Bearing: Double ball bearing for smooth rotation
Connector Type: 3-pin (Signal, VCC, GND)
📏 Specifications Table:
| Parameter | Value |
|---|---|
| Voltage Range | 4.8V – 7.2V |
| Stall Torque | 11–12 kg·cm @ 6V |
| Rotation Angle | 180° |
| Gear Material | Metal |
| Bearing Type | Dual ball bearing |
| Weight | ~55g |
| Dimensions | 40.7 x 19.7 x 42.9 mm |
| Connector | Futaba 3-pin (Universal) |
🧩 Perfect For:
Robotic arms and legs
Steering mechanisms in RC cars and boats
Pan/tilt camera systems
Mechanical control systems
Arduino and ESP32 projects

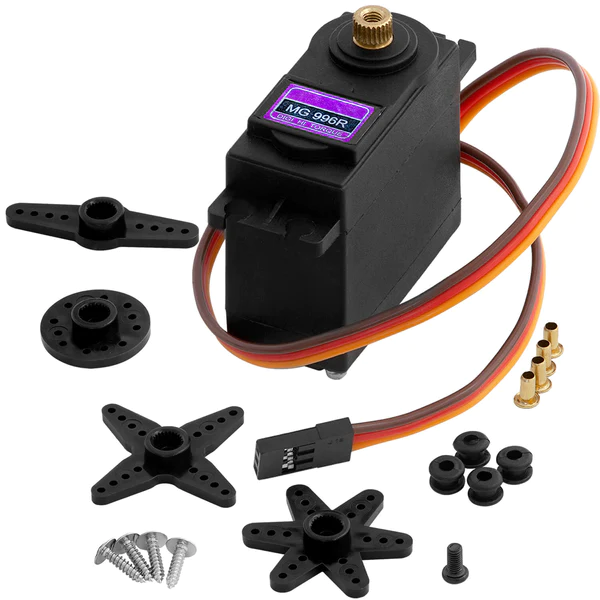

📦 Package Includes:
1x MG996R Servo Motor
3x Servo Arms (Horn: cross, round, and straight)
Mounting screws
🔌 Wiring:
Red: VCC (+5V to 6V)
Brown/Black: GND
Orange/Yellow: PWM Signal
🔧 Why MG996R?
High torque for demanding applications
Durable metal gears
Great for robotics and automation projects
Compatible with Arduino, Raspberry Pi, STM32, etc.
