SG90 Micro Servo Motor – 9g | 180° Rotation
Lightweight, compact, and ideal for precision control in DIY and robotics projects.
✅ Key Features:
Model: SG90 Micro Servo
Weight: 9g
Operating Voltage: 4.8V – 6.0V
Stall Torque:
1.2 kg/cm @ 4.8V
1.6 kg/cm @ 6.0V
Speed: 0.12 sec/60° @ 4.8V
Rotation Range: 0° – 180°
Gear Type: Nylon gears (lightweight and durable)
Connector Type: 3-pin (Signal, VCC, GND)
Wire Length: ~25 cm
Dimensions: 23mm x 12.2mm x 29mm
🧩 Perfect For:
Arduino & Raspberry Pi projects
RC planes, boats, and cars
Robotic arms and legs
Sensor movement systems
Smart models and animatronics

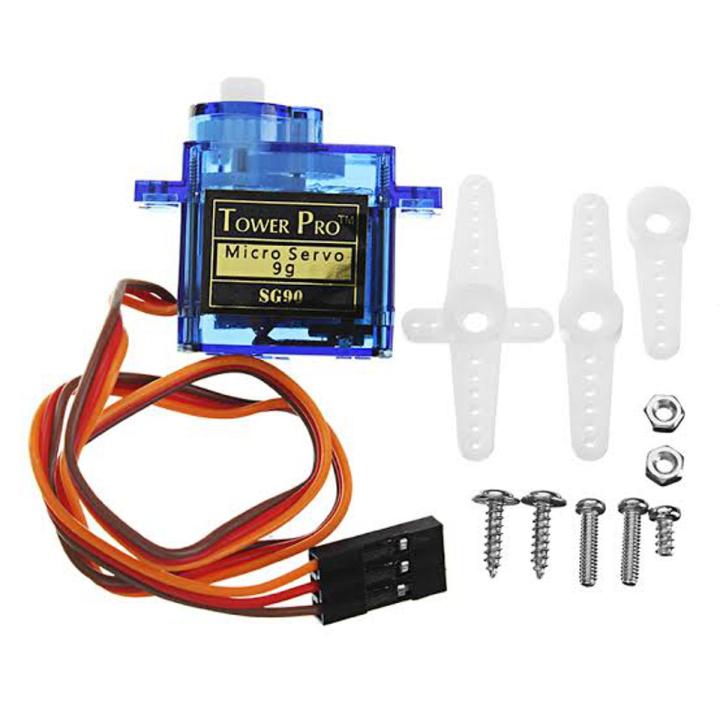

📦 Package Includes:
1x SG90 Servo Motor
3x Servo Horns (arms: straight, cross, round)
Mounting screws
⚙️ Control Interface:
Signal: PWM (Pulse Width Modulation)
Compatible with most microcontrollers (Arduino, ESP32, STM32, etc.)
Easy to control with libraries like Servo.h in Arduino IDE
🔒 Why Choose SG90?
Affordable and beginner-friendly
Widely supported in tutorials and online projects
Reliable for lightweight, low-power robotic functions
