Key Features:
High voltage output: Generates up to 400kV pulses
Wide input range: 3.7V to 7.4V DC (ideal for lithium batteries or DC power supply)

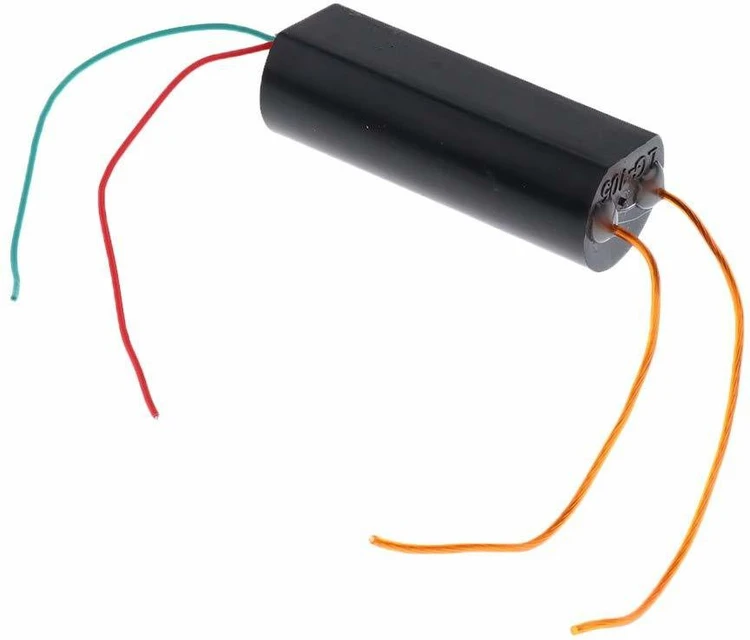

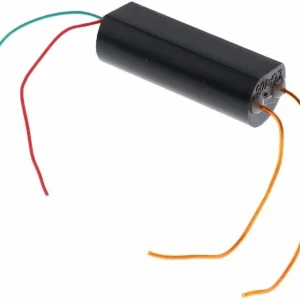

Compact module design with two output terminals (high voltage wires)
Produces high-frequency DC pulses
Great for experimentation, ignition, and spark gap projects
Specifications:
Parameter | Description |
---|---|
Input Voltage | DC 3.7V – 7.4V |
Output Voltage | Up to 400kV (pulsed high voltage) |
Input Current | 1A – 2A (based on input source) |
Output Type | High-frequency pulsed DC |
Arc Distance | 10mm – 20mm (approx.) |
Module Size | ~65mm × 24mm × 22mm |
Wire Length | ~100mm (input & output) |
Build Material | ABS housing with epoxy potting |
